Wire Mesh
We introduce ourselves as the leading manufacturers of Industrial wire screen meshes having complete infrastructure under one roof to manufacture wide range of screen meshes like vibrating screen mesh, harp mesh, crimped wire mesh as per IS 2405/1963 specifications made in various metals like High carbon steel, Stainless Steel, copper, brass, MS.
Product Range
Premium Industrial Wire Mesh Solutions
Built for strength, precision, and long-lasting performance in mining and aggregate screening applications.

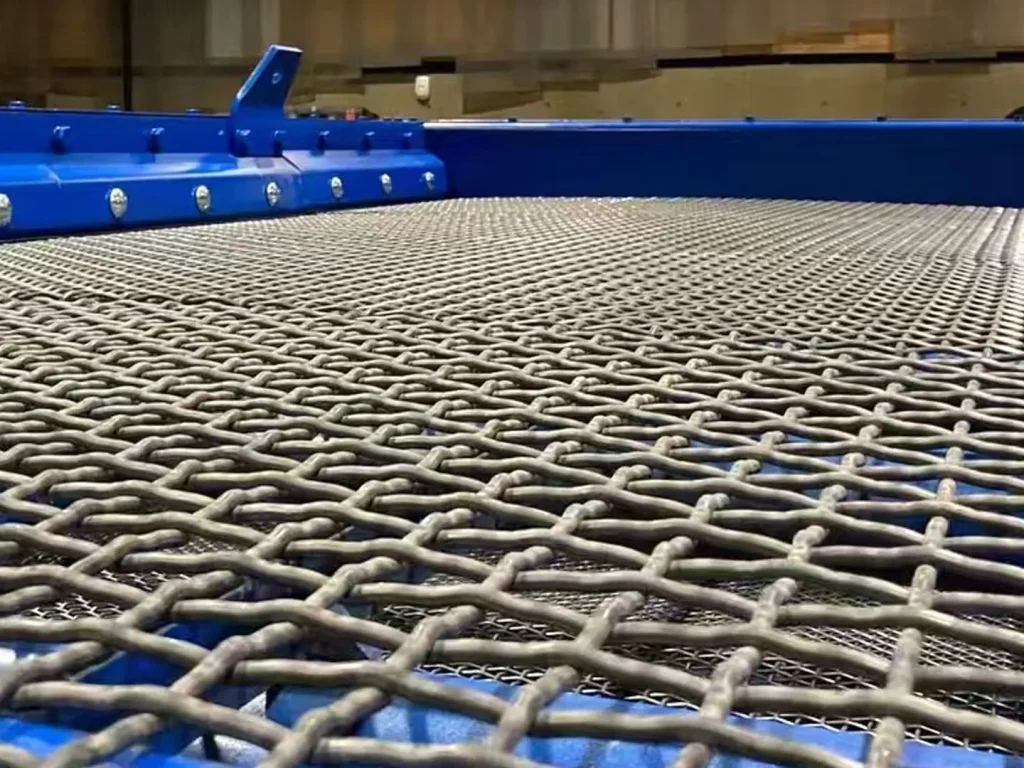

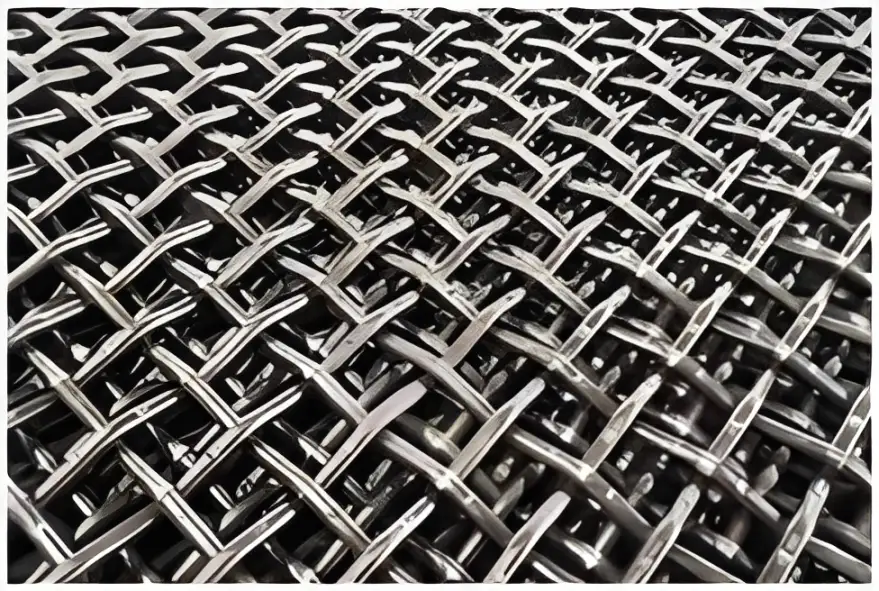

Vibrating Screen Mesh
We come up with wide range of vibrating screen mesh in various sizes and shapes. We professional manufacture them using quality tested raw materials in conformation with varied quality standards. The Vibrating Screen Mesh is manufactured to ensure optimum finish, high strength, and low maintenance cost. Screens are woven accurately to the mesh size with appropriate wire or wire rod to meet specific requirements.They can be used on all types of mining products with high abrasive.

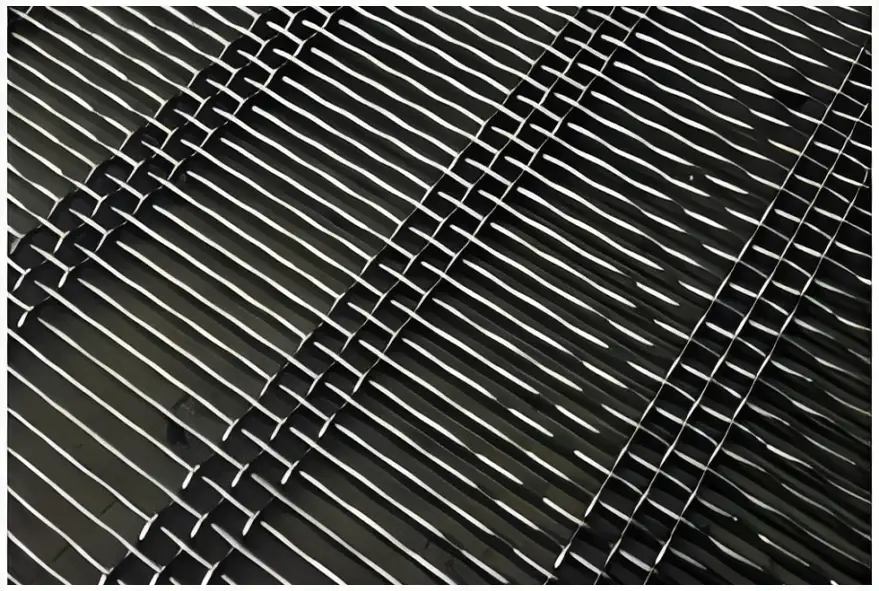

Harp Mesh
Harp screens are in the group of self-cleaning screens. Harp screens made of straight or woven wire it was solution in screening for the moist, sticky materials, and other difficult-to-screen materials. Due to the vibrations of the wires, there is a self-cleaning effect on the screen, which results in increased screening efficiency compared to the braided screens. The harp wire webs are made of abrasion resistant material to ensuring a longer screen life.
- Aperture size : 2mm to 35 mm
- Wire diameter : 1mm to 6 mm
- Material: Stainless Steel, Spring Steel / High Carbon, Mild Steel and G.I

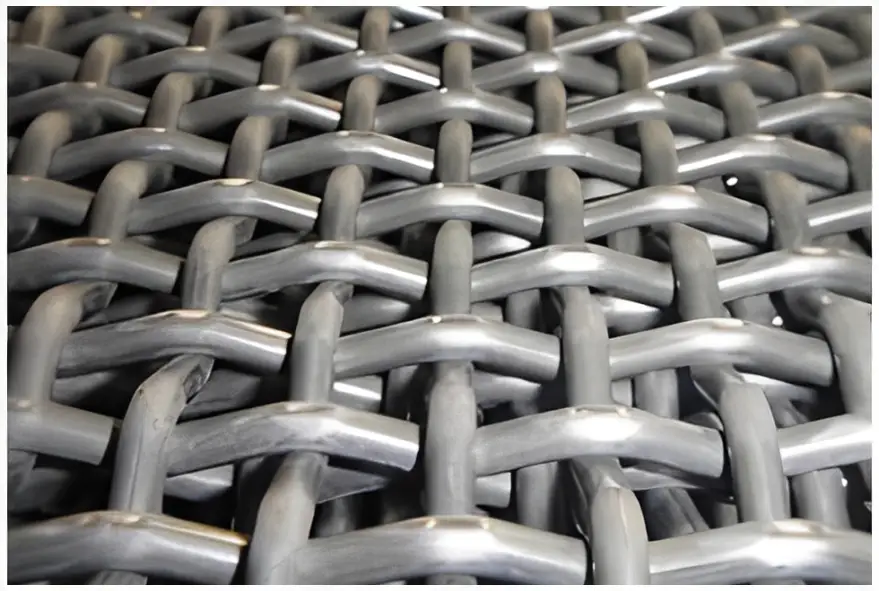

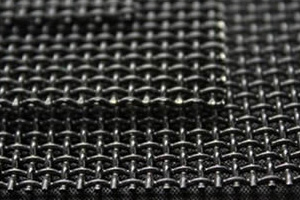

Crimped wire mesh
Crimped Mesh is referred to as Heavy Wire Mesh. It is mainly used in industries for heavy screening and sieving. Crimped Wire Meshes have square or rectangular openings/spacing and the wire thickness/diameter depends upon the dimension of the mesh spacing or toughness required by the customer. It is mainly used in industries for heavy screening and sieving.
Specifications
- Aperture size : 1 mm to 100mm
- Wire diameter : 1 mm to 16mm
- Material: Spring Steel, Stainless Steel and Mild Steel.
- Type : Single & Double crimped
